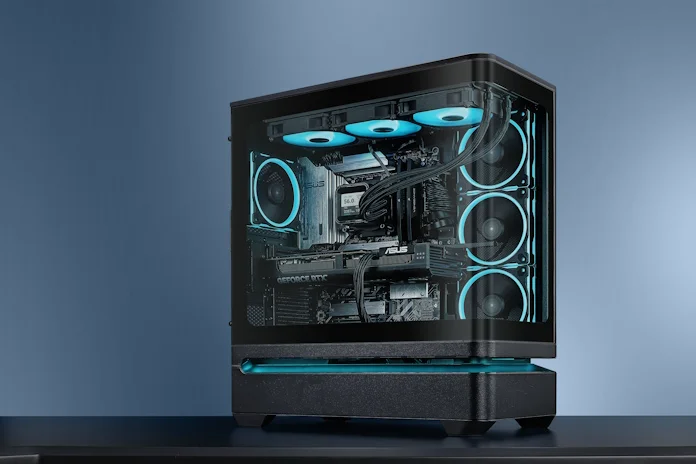

ASUS Prime AP304 PC機箱讓ATX硬體閃耀並透過曲面全景側板展示流暢氣流

The sleek curves and innovative cooling of the ASUS Prime AP202 made it an instant contender in the world of panoramic PC cases. If that chassis style fits your vision for your next build, but its microATX form factor isn’t compatible with your preferred motherboard, we have a new option on the table for you. The ASUS Prime AP304 ups the ante with full compatible with ATX components, all while retaining the striking exterior, patented airflow design, and easy PC building process that marks its little brother. Whether you’re a gamer, creator, or PC enthusiast, the AP304 combines visual appeal with practical functionality, showcasing your hardware from nearly every angle while providing the airflow it needs to perform at its best.

As a sizeable case ready for ATX motherboards, the Prime AP304 gives you wide-ranging choice when it comes to picking parts for your next build. The roomy interior also supports graphics cards up to 420mm. This means if you have a flagship card and want to show it off, the AP304 is more than ready for the job. But though the AP304 puts the spotlight on the hardware inside, it still packs an aesthetic punch of its own. Coming in two colorways, black and white, this case is ready to support a stealthy and sleek dark build or snowy stunner — whichever fits your style best. Thanks to the curved tempered glass viewing panel that wraps around nearly half the case, you’ll get a clear look at anything you stick inside your chosen colorway.

The fully tempered glass panel is rigorously tested for durability, ensuring it can handle the demands of daily use, from assembly and upgrades to the occasional bump or knock. The panel’s easy-detach rail makes removing and reconnecting it a tool-free, effortless affair.

If you simply want a sturdy viewing lens for your hardware, the AP304 is ready to serve. Just note we also have the AP304 ARGB model that packs Aura Sync-compatible lighting options, should you want your rig as radiant as possible. It features a customizable light band near the bottom of the case that travels along the edges, going all the way from front to back. It’ll illuminate your case’s bottom while ARGB fans handle the rest of the rig. All these lights are yours to adjust as you see fit or turn off entirely. You can easily control the ARGB action from our Armoury Crate app .

To keep the AP304 visually clean so your parts take center stage, the case sports a 33mm cabling space to keep cables tidy and tucked away.

The AP304 is designed for smarter airflow. Our patented obstruction-free airflow design points air toward key components such as the graphics card so that even when the rig’s under load, it stays as thermally efficient as possible.

The key piece to the puzzle is a deep groove near the bottom of the chassis that runs along the edge of the tempered glass side panel. This patented slot vent allows the chassis to breathe deep, and its placement makes sure that your graphics card in particular has direct access to fresh air. When we conducted a head-to-head comparison with a similarly structured chassis, we found that the AP304 was able to reduce GPU temperatures by over 11.7%.

The larger size of the AP304 allowed us to increase the number of fan mounts it offers compared to the AP202. With support for a 360mm AIO cooler and ten total 120mm fan mounts, the AP304 is serious about refreshing your components. The AP304’s capacity allows a variety of fan and radiator placements so you can optimize for your rig’s specific needs. Up to three 120mm fans or two 140mm fans fit on top, up to three 120mm fans can go on the side, another three 120mm fans fit on the bottom, and there’s room for one rear 120mm fan. The case’s removable dust filters keep gunk out, bolstering the fans’ ability to move air.

The AP304 is built around making your life easy from initial assembly to maintenance, upgrading, and beyond. The panoramic glass panel’s easy-detach rail and 33mm-wide cabling space are two examples of that design philosophy, but there are more worth highlighting.

Enjoy tool-free side panel removal on the AP304 as well as tool-less graphics card mounting. A graphics card slot clamp makes the process hassle-free so you can assemble and upgrade your PC faster than ever.

The unified front I/O panel renders peripheral connection a cinch, making manual routing a nonissue. And that panel packs a USB 20Gbps Type-C port alongside two USB 5Gbps Type-A ports and audio input/output jacks. You’ll be able to plug in all the essentials with maximum convenience.

The AP304 also simplifies component shopping. Beyond its support for ATX motherboards, room for 420mm graphics cards and 360mm AIO coolers, it’s primed for 200mm PSUs. You’ll have no shortage of options when deciding how to fill out your AP304 — meaning you can focus on which parts will look best when displayed via the case’s panoramic paneling.

The ASUS Prime AP304 gives you a gorgeous way to display your rig’s internals while keeping those precious parts cool as can be. Armed with handy features and impressive compatibility designed to satisfy DIY dreams, the AP304 is ready for adventurous builders. And with its two colorway options, it’ll fit into a wide variety of setups. Opt for the AP304 ARGB if you want to glow up your build.

For additional information on the AP304’s pricing and availability in your region, please contact your local ASUS representative.
